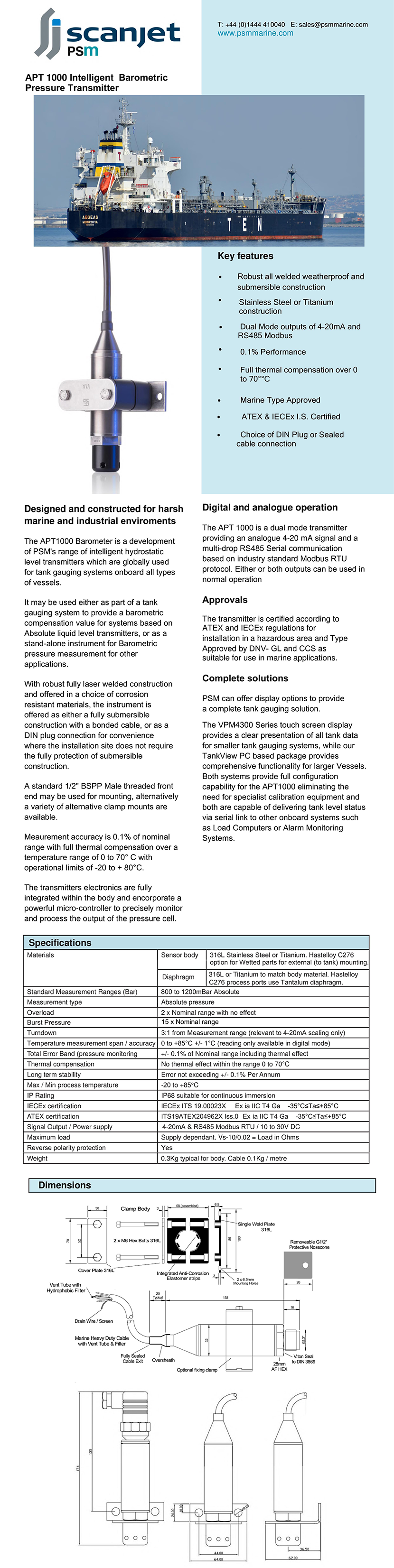

智能數字型大氣壓力變送器 |
類型: |
壓力式 |
測量對象: |
液體 |
測量目標: |
氣壓補償/壓力 |
信號轉換: |
模擬信號/數字信號 |
數值類型: |
絕對值 |
最大量程: |
1.2Bar |
超負荷量程倍數: |
2 |
量程定制: |
不可定制 |
量程比: |
3 |
最小量程: |
0.8Bar |
性能亮點: |
Robust all welded weatherproof and submersible construction ; Choice of Sealed cable connection or DIN Plug for either fully submersible installation or the installation site which does not require the fully protection of submersible construction; Can be also uesd as a stand-alone instrument for Barometric pressure measurement for other applications; |
輸出信號: |
4-20mA/ RS485 Modbus RTU |
脹裂壓力: |
15 x Nominal range |
精度: |
0.1% |
供電電壓: |
10 ~ 30V DC |
反接保護: |
Yes |
工作溫度: |
-20 ~ +85°C |
溫度補償: |
0 ~ 70°C |
本體材質: |
316L Stainless Steel or Titanium |
防護等級: |
IP68 |
國際防爆認證: |
IECEx ITS 19.00023X Ex ia IIC T4 Ga -35℃≤Ta≤+85℃ |
歐洲防爆認證: |
ITS19ATEX204962X Iss.0 Ex ia IIC T4 Ga -35℃≤Ta≤+85℃ |
變送器方向: |
NA |
|
|
